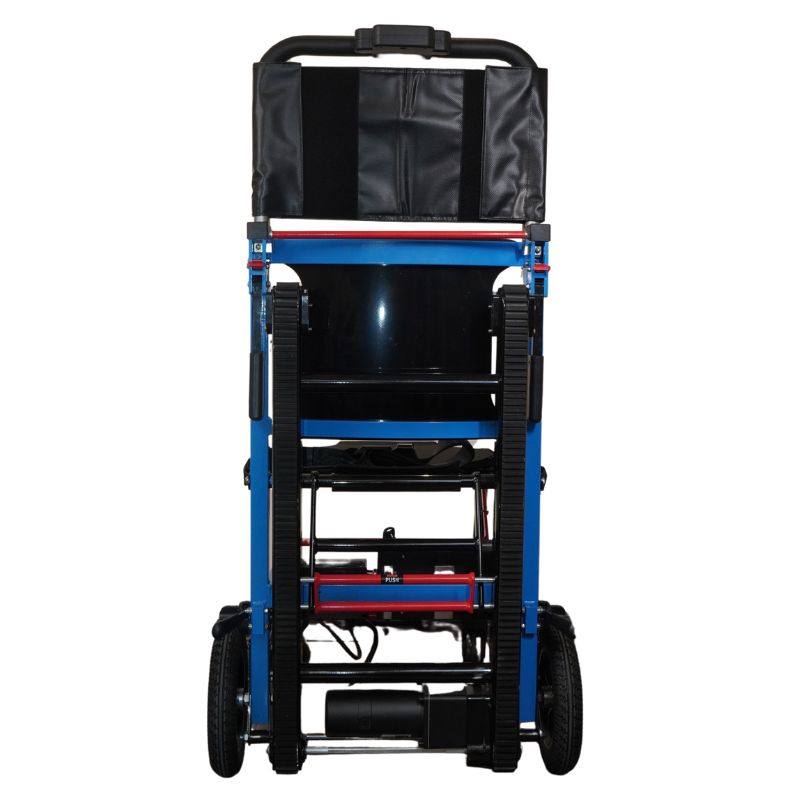

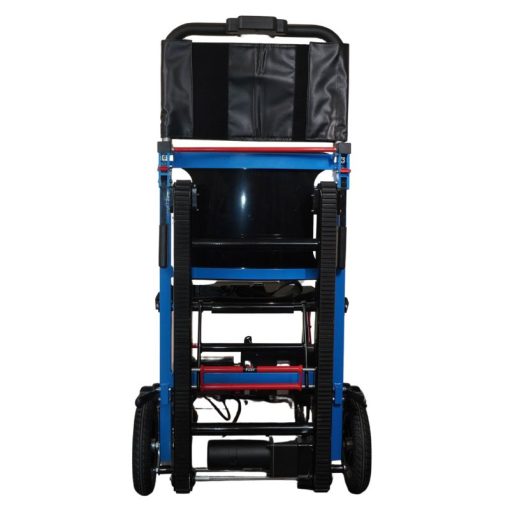

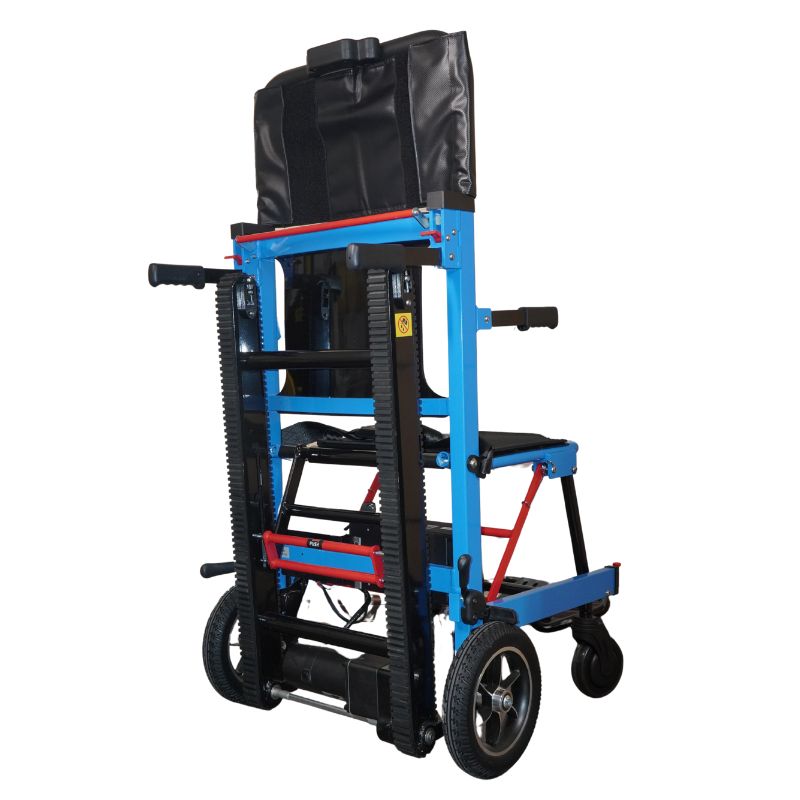

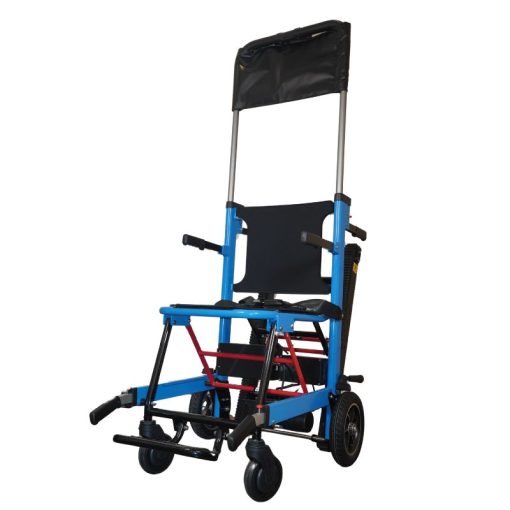

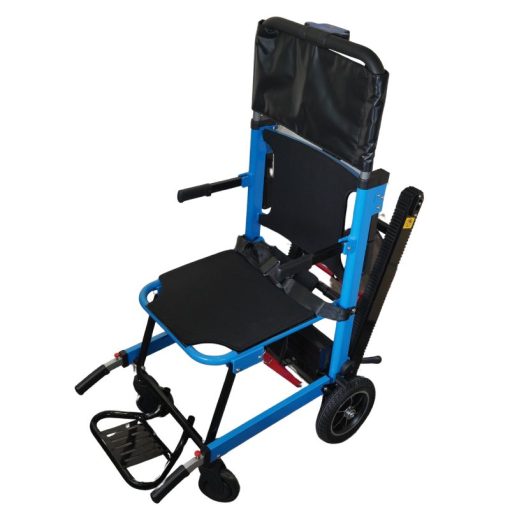

Electric Climbing Stairs Wheelchair Flagship Model With Speed Control FSW01

Description

Fresco Bike 81cm Track Climbing Wheelchair Flagship Model with Speed Control (Suitable for outdoor use)

Feature

• Frame Material : High Strength Aluminium Alloy
• Coating : Environmentally Friendly Spray Coating
• Backrest Main Frame : “D-Shaped Tubing (Tube Wall Thickness 2mm”)
• Seat Board : “Aluminium Alloy
• Seat Width ： 41cm
• Seat Depth ： 49cm”
• Cushion : Thin Sponge Cushion（Thickness 0.5cm）
• PVC Waterproof Fabric + Thick High-Density Sponge Cushion
• Armrest : “High-Strength Aluminium Alloy + Rubber（Short Armrest)”
• Lifting Bars on Both Side of Footboard : Yes
• Expanded Dimensions（LxWxH)cm : 127 x 61 x 156 (±1cm)
• Folded Dimensions（LxWxH)cm : 101 x 61 x 31 (±1cm)
• Packaging Dimensions（LxWxH)cm : 110 x 66 x 32(±2cm)（Carton Box）
• Net Weight : 29 kg
• Gross Weight (Packaging Weight) : 35 kg
• Front and Rear Wheel Size : 5inch (front) 10inch (rear)
• Max Loading : 160kg (Recommended 150kg)
• Climbing Speed : Average Speed 1.1/1.2/1.3s per step (3 speed)
• Climbing Wheelchair Motor : Carbon Brush 120w
• Track Width and Thickness : Width：3.2cm/Thickness：1.5cm
• Track Angle : 15°/25°
• Track Material : Wear-Resistant Rubber Lining Reinforced with Nylon Rupe
• Track Opening Method : Manual Two Gears
• Battery : Lithium Battery 24V/13AH
• Battery Continuous Operation : Approximately 500 Steps
• Front and Rear Wheel Size and Material : “5inch/10inch（Solid PU Wheel)
• Front and Rear Wheel Spacing : 64cm
• Left and Right Wheel Spacing : 50cm
• Charger : Malaysia Plug 240V
