RM5,595.00
24V 150W Brushless Motor – longer lifespan, quiet & low maintenance
24V 12Ah Lithium Battery – travel up to 15km per charge
Carbon Fiber Frame – ultra-lightweight, strong & rust-resistant
Supports up to 120kg – suitable for various users
Flip-up Armrests – easy transfer in and out of the wheelchair
Solid PU Wheels – durable & no air pumping needed

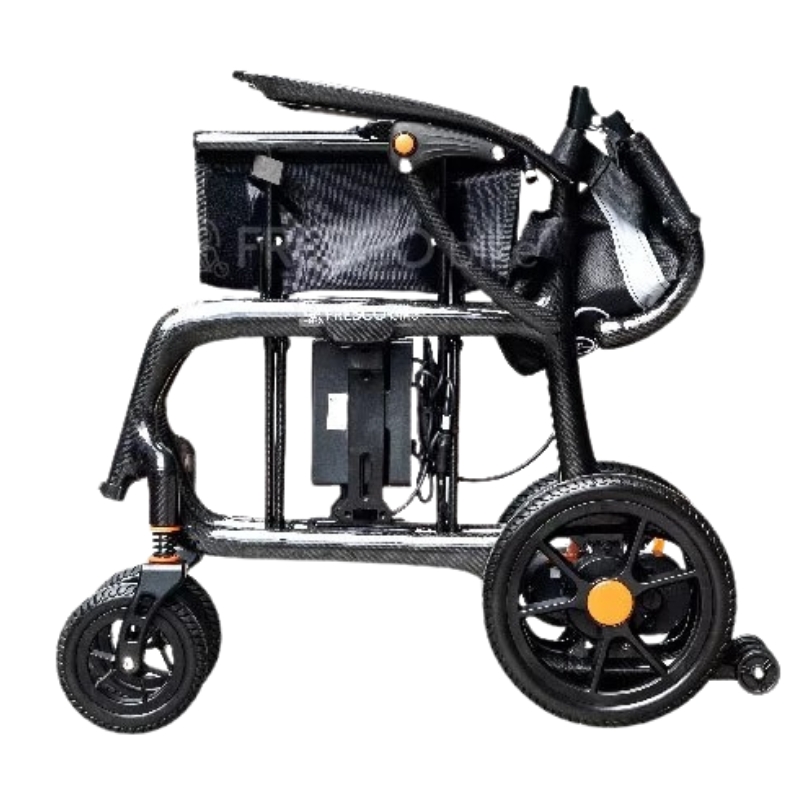

Foldable Design – easy to store & fit into car trunk

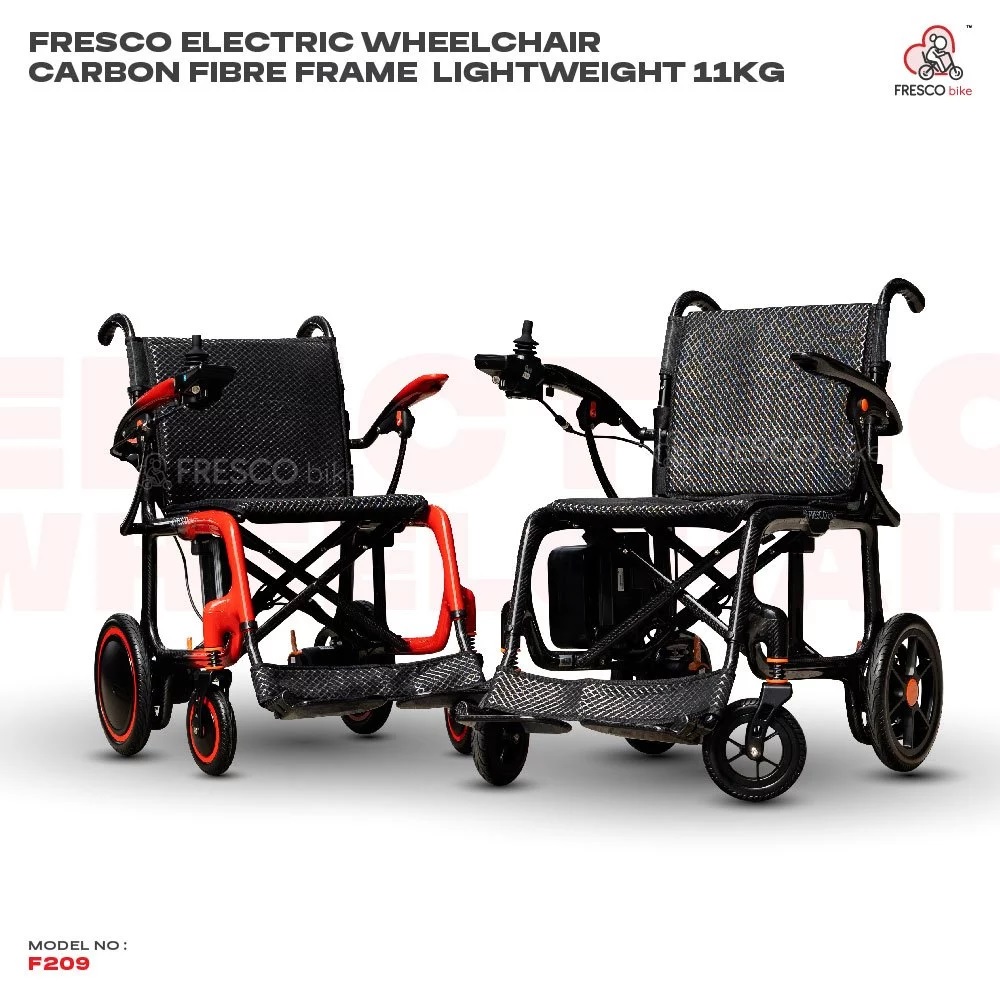

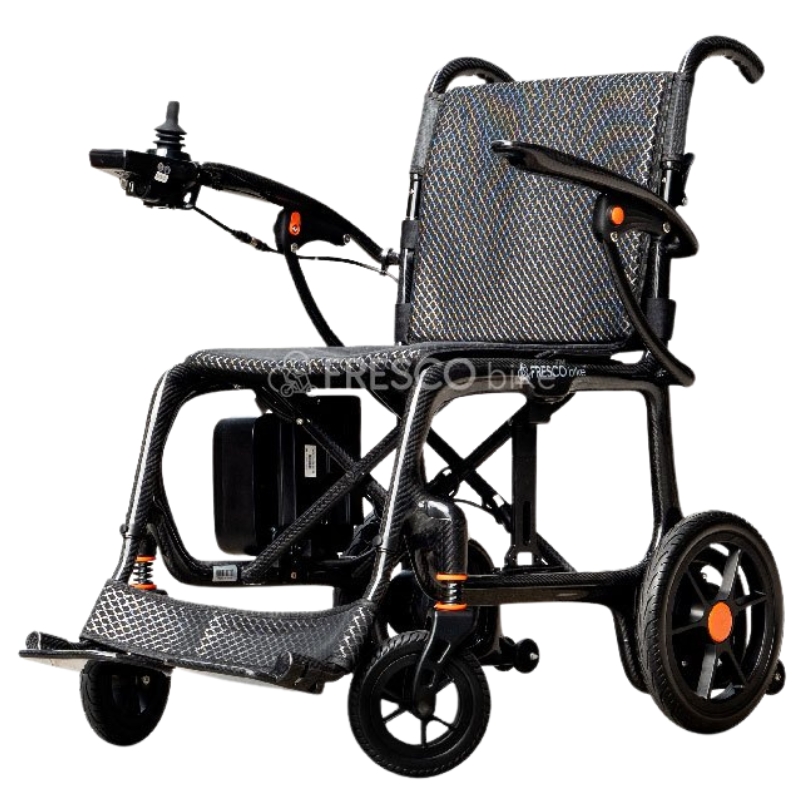

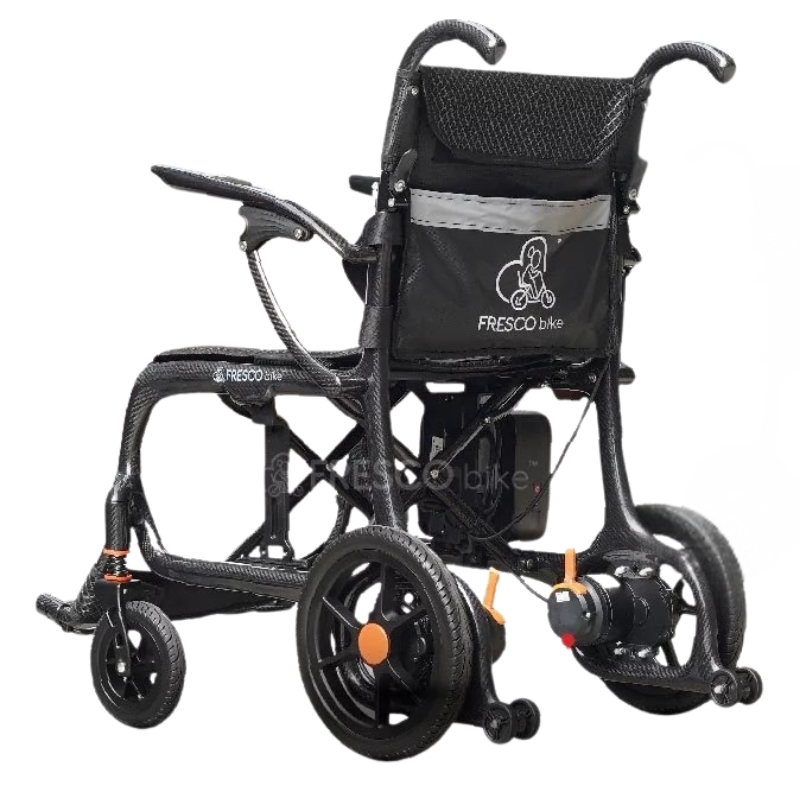

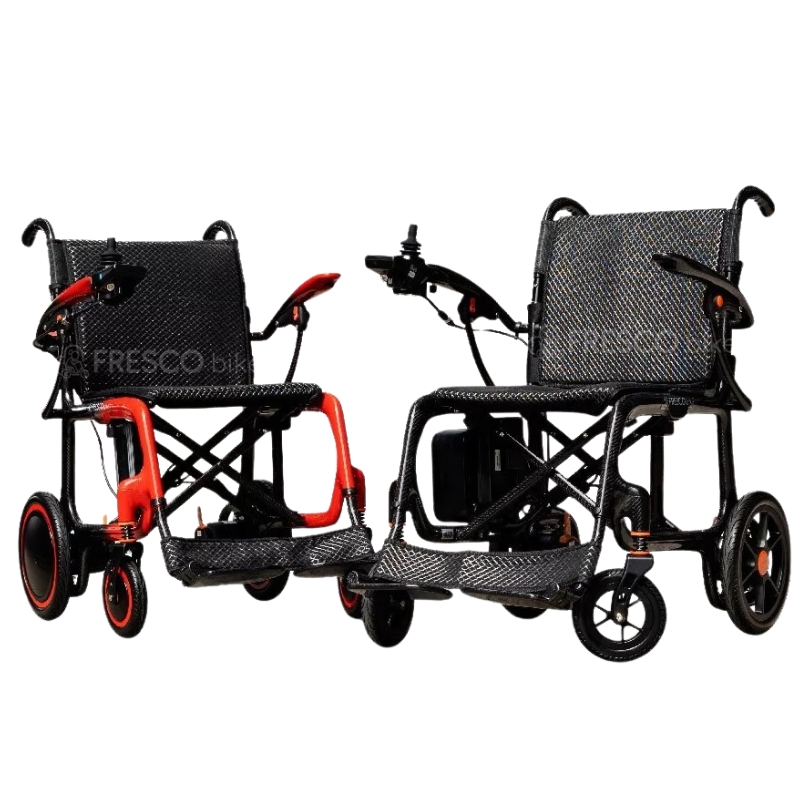

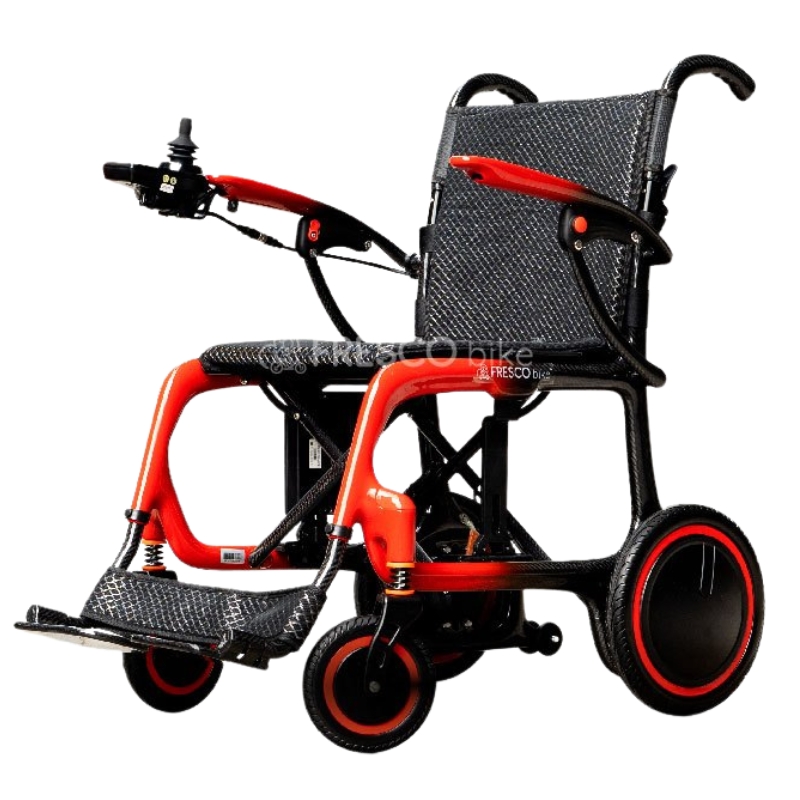

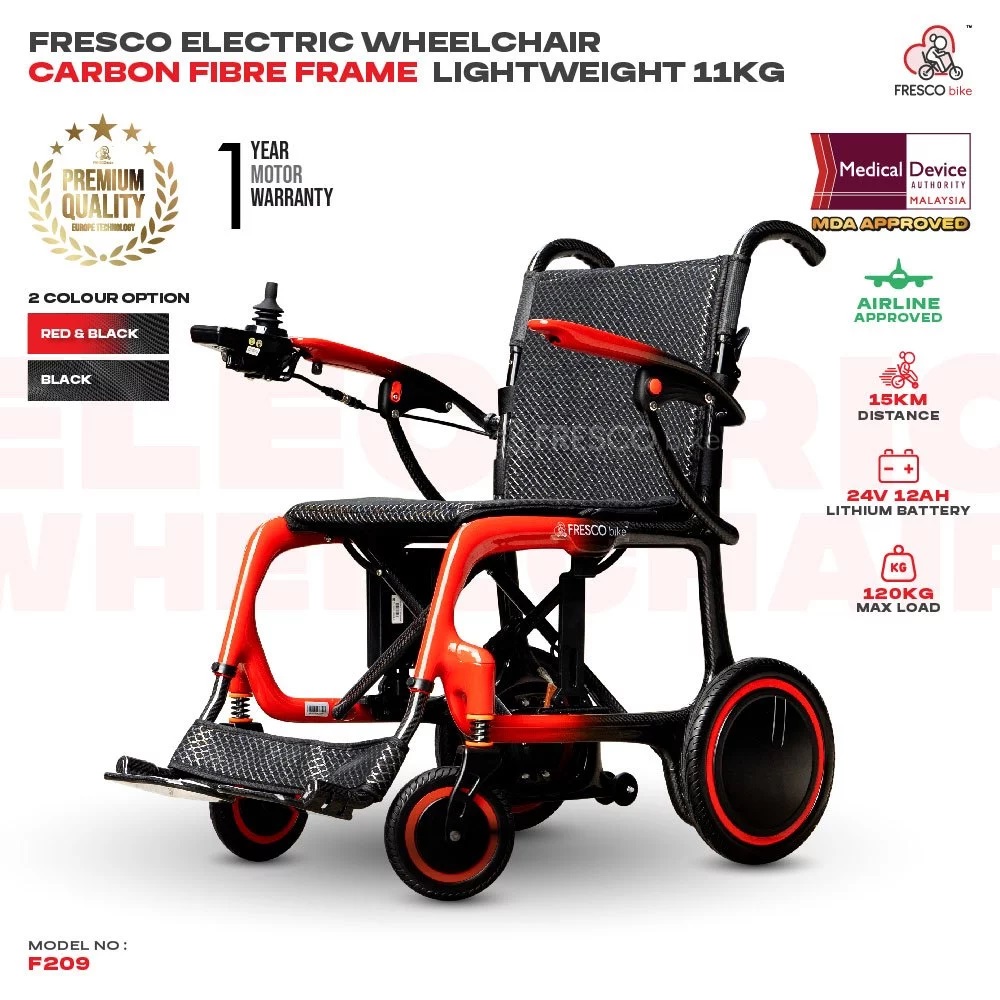

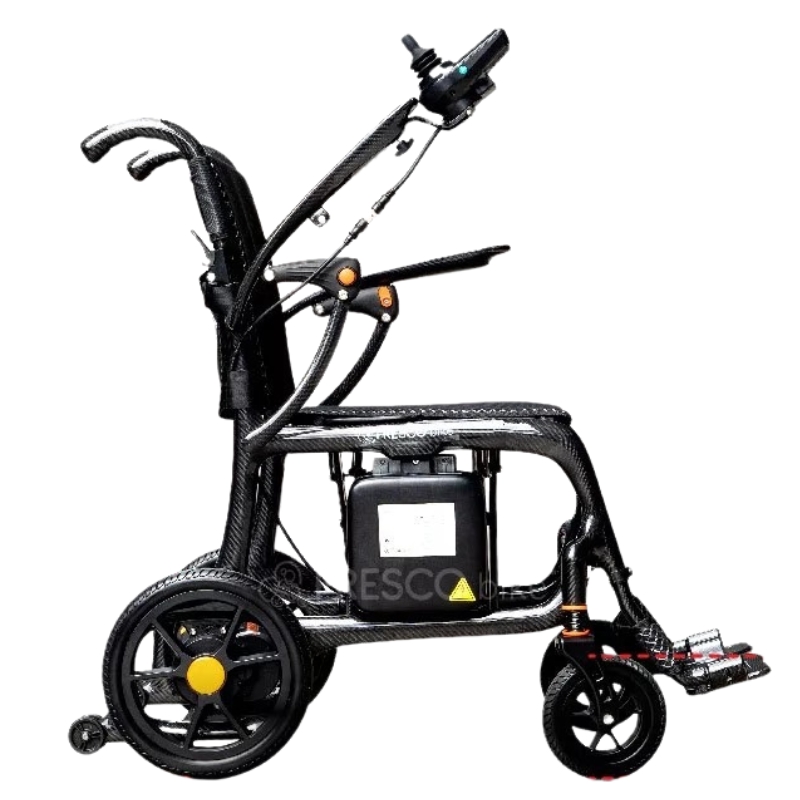

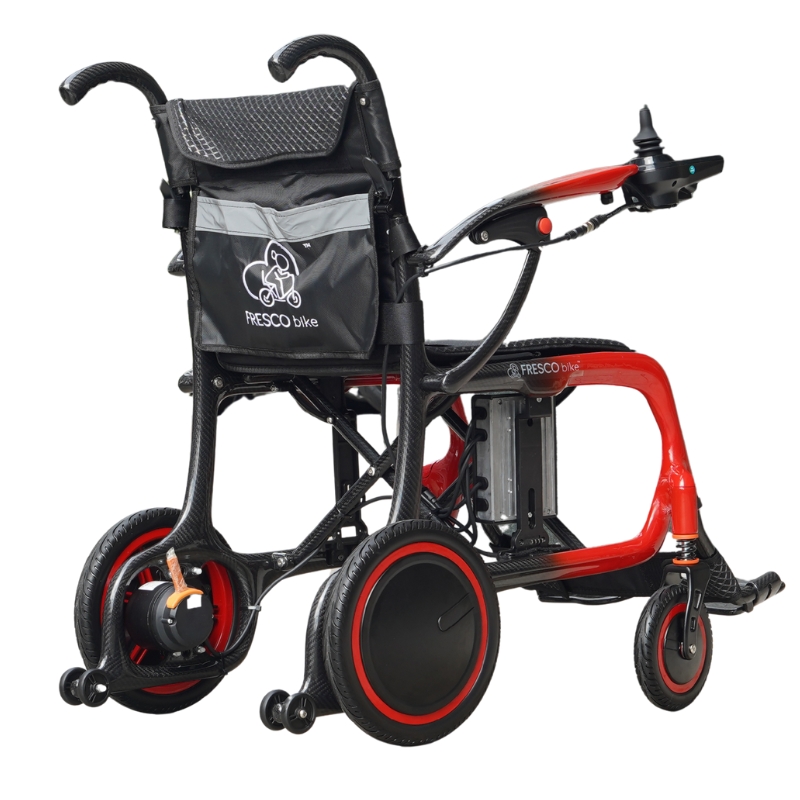

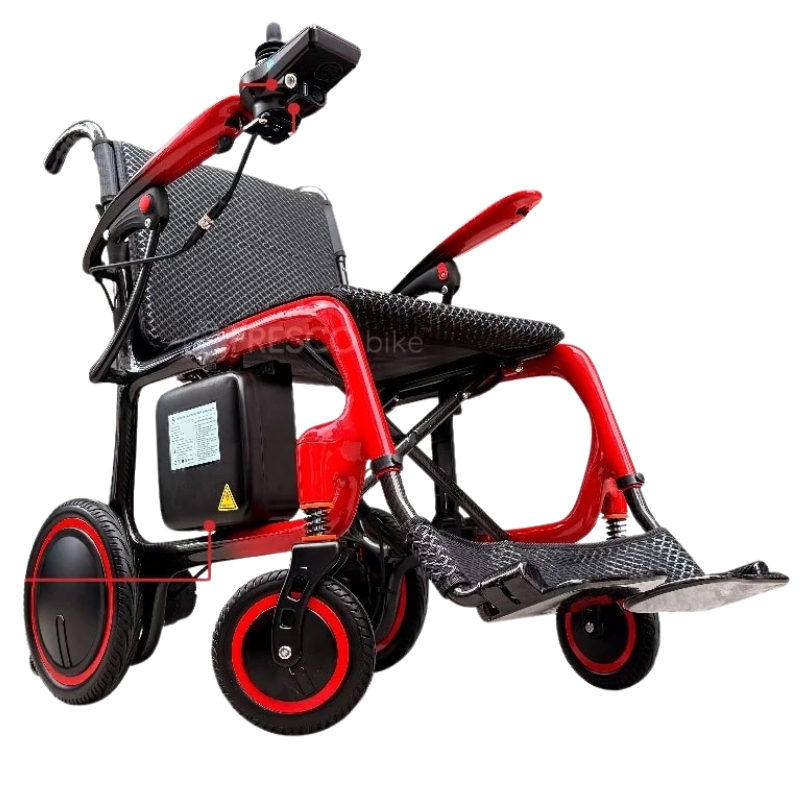

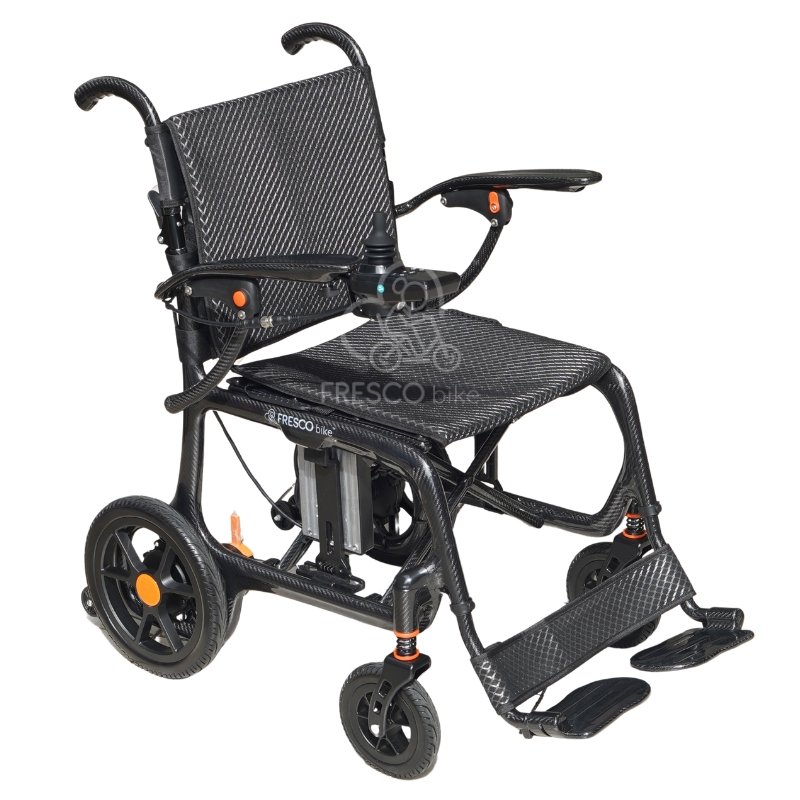

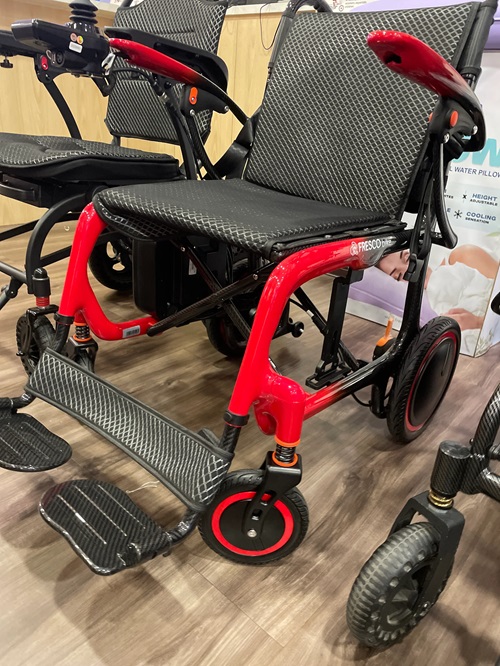

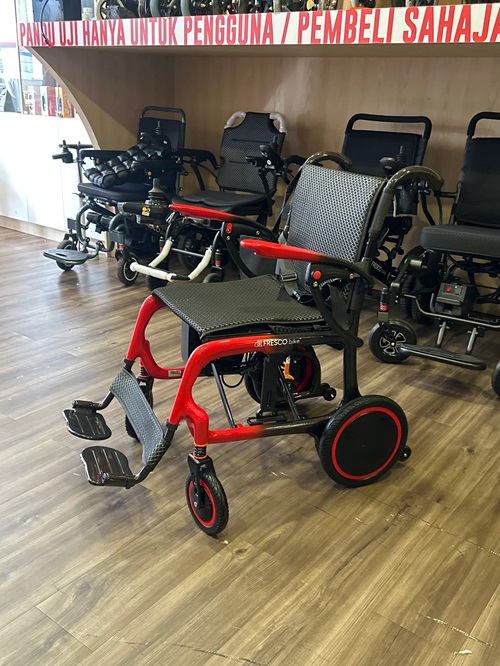

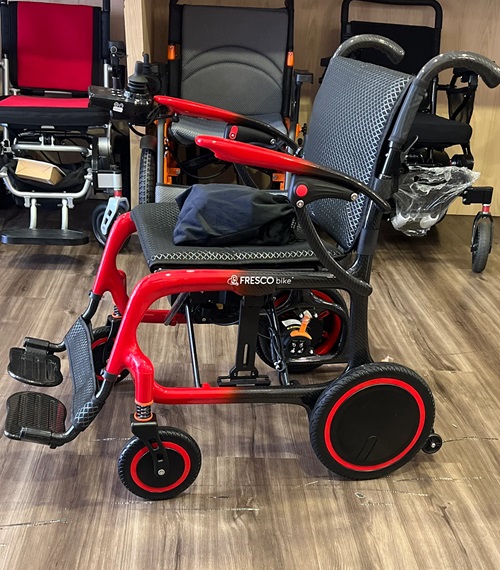

🚀 Lightweight Carbon Fiber Electric Wheelchair – Model F209
📌 Product Specifications:
| Electric Wheelchair Specifications | |
|---|---|
| Frame Material | Carbon Fiber |

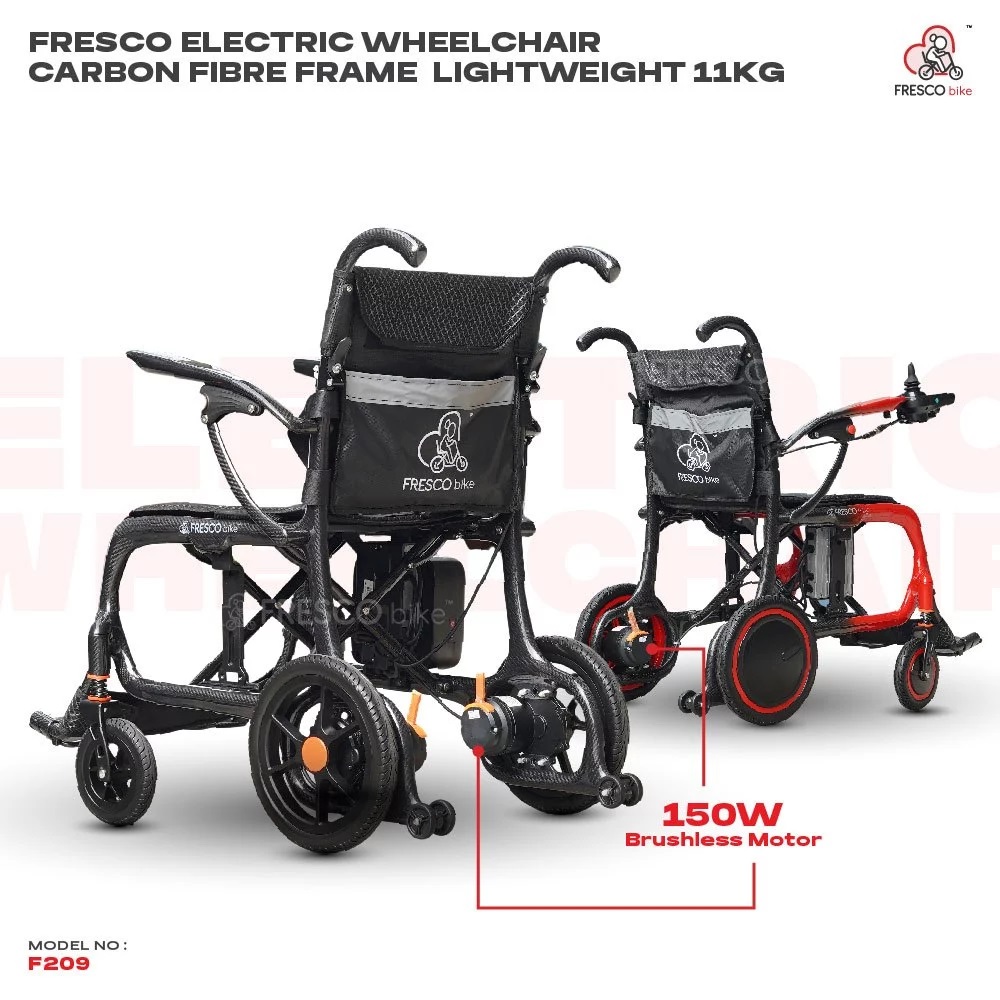

| Motor | Brushless 24V 150W |

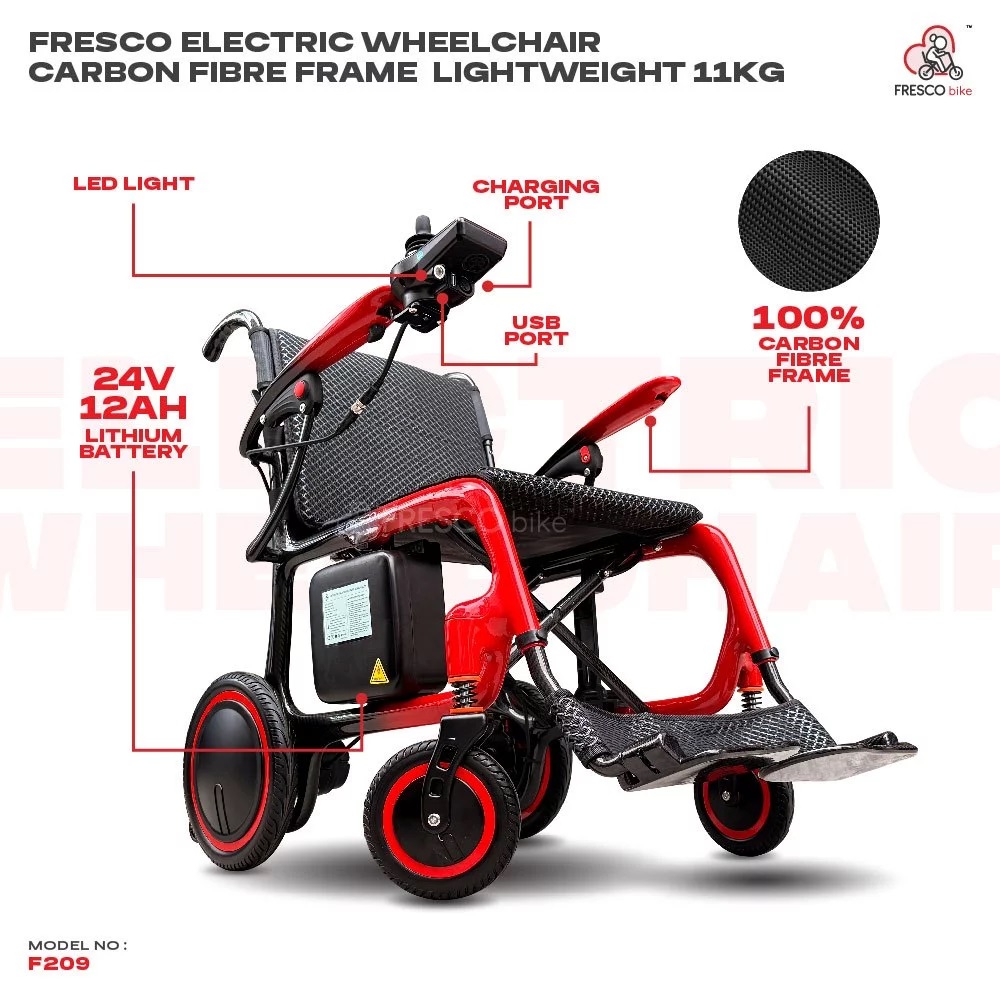

| Battery | Lithium 24V 12Ah (2.2kg) |
| Net Weight (without battery) | 13.3kg |
| Speed | 0–4.5 km/h |
| Driving Range | 15 km |
| Charging Time | 4–6 hours |
| Max Load Capacity | 120 kg |
| Front Wheel Size | 7″ (165 × 30 mm, PU solid) |
| Rear Wheel Size | 11″ (277 × 35 mm, PU solid) |

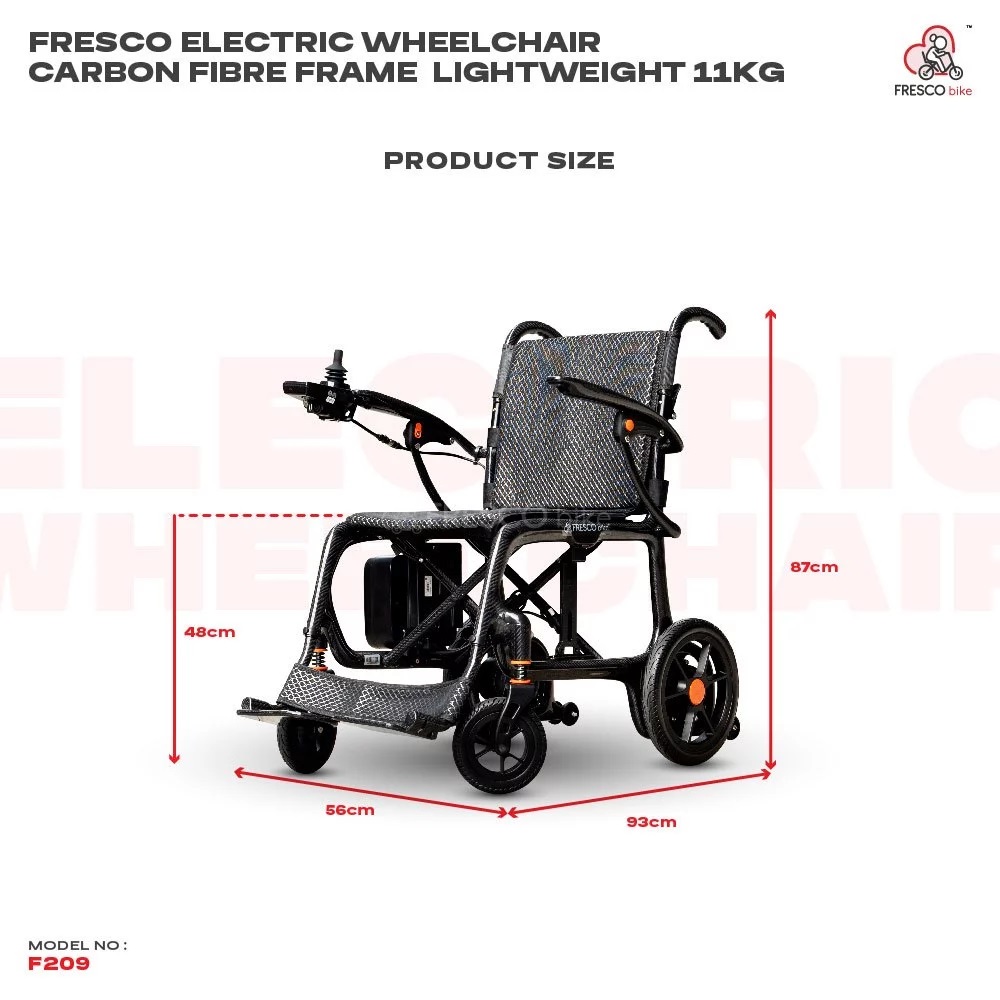

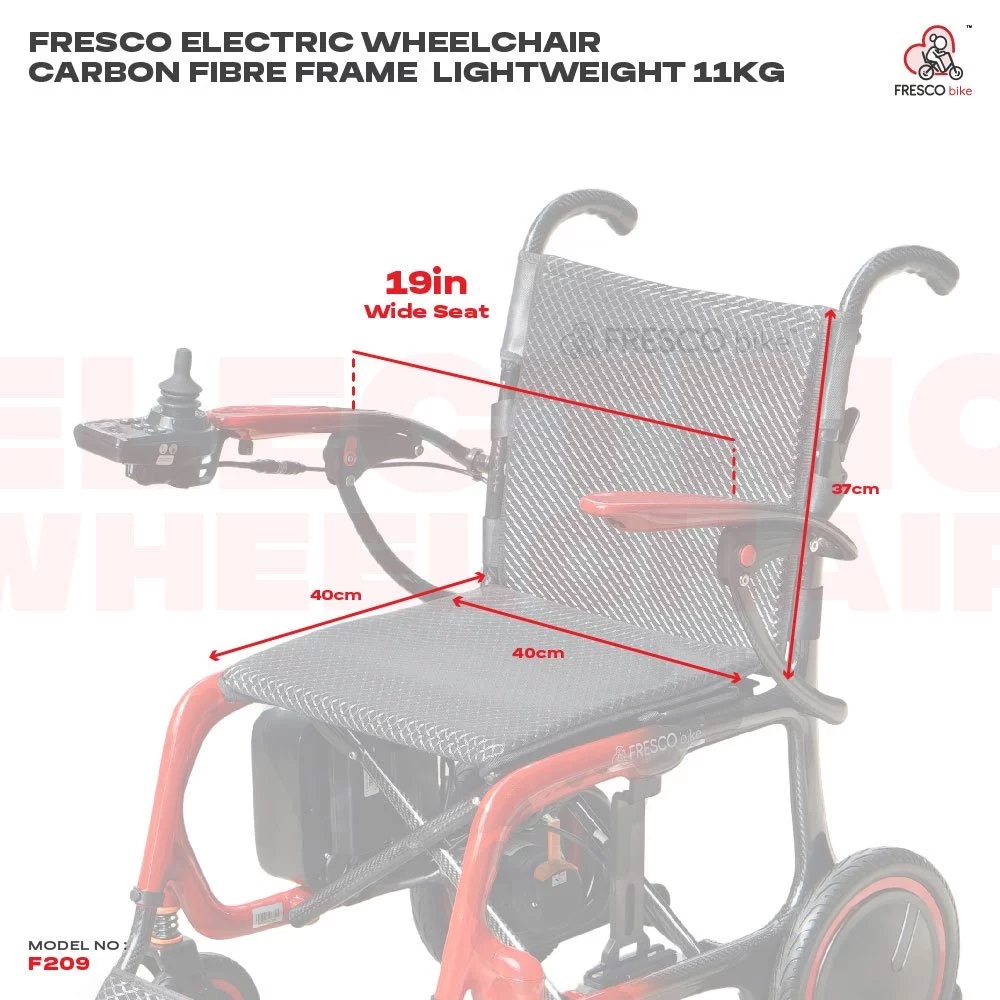

| Unfolded Size | 93 × 56 × 87 cm |

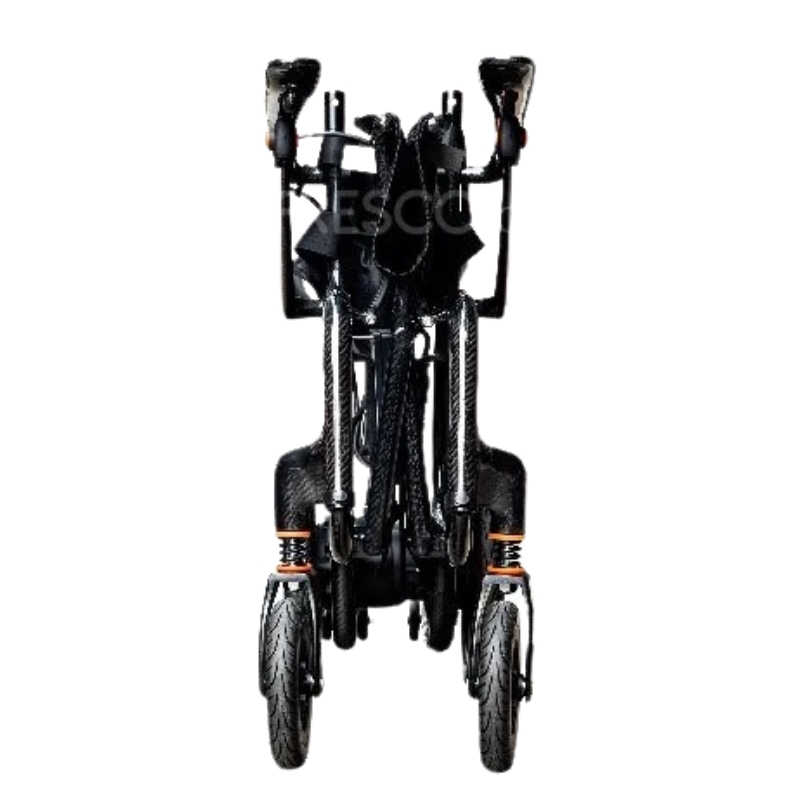

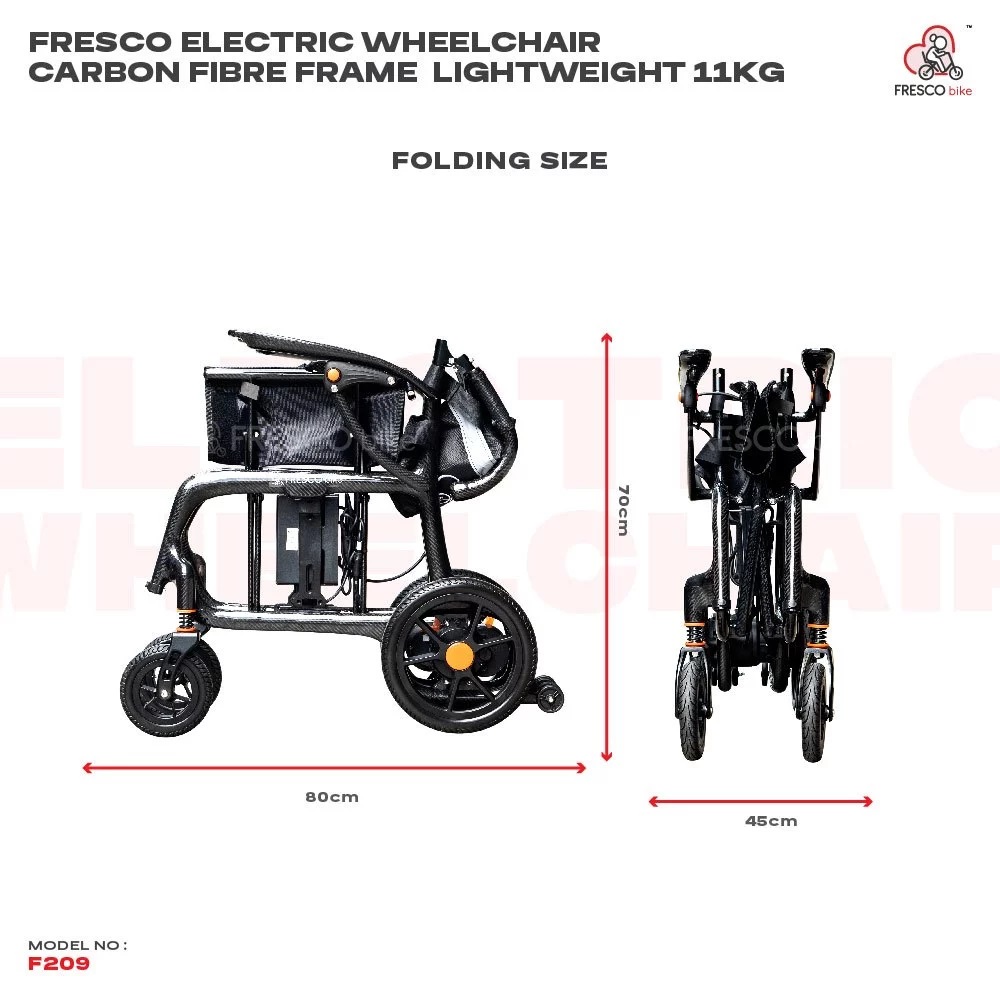

| Folded Size | 79 × 32 × 79 cm |
| Climbing Ability | 6° |
🎁 Suitable For:
✔ Elderly users
✔ Disabled users
✔ Post-surgery recovery
✔ Daily use at home, malls, or outdoor trips
💡 Why Choose Brushless Motor?
Lasts longer, operates quietly, saves energy & requires less maintenance compared to carbon brush motors.
| Weight | 14 kg |
|---|---|
| Dimensions | 79 × 32 × 87 cm |
| Colour | Black, Red |
@fresco_service Apa tu Kerusi Roda Elektrik Carbon Fiber? #kerusirodaelektrik #kerusirodamalaysia #electricwheelchair #repairwheelchair #carbonfiber ♬ original sound – fresco service
@frescobike Replying to @Roslee Tahir Paling ringan 11kg. Hmm 11.6kg ringan sangat dah tu. Nak try angkat masuk dalam kereta boleh datang kedai kami test dulu #fyp #frescobike #kerusirodaelektrik #electricwheelchair #fyppppppppppppppppppppppp #fypシ゚ #fypシ゚viral #wheelchairlife #wheelchairmalaysia #wheelchair ♬ Write This Down (Instrumental) – SoulChef
@frescobike Cantik tau meter digital ni kerusi roda elektrik karbon fiber. Senang nak guna #fyp #frescobike #kerusirodaelektrik #electricwheelchair #fyppppppppppppppppppppppp #fypシ゚ #fypシ゚viral #wheelchairlife #wheelchairmalaysia #wheelchair ♬ nhạc nền – douyin dance
| Fault Code | Fault Description | Troubleshooting Method |
|---|---|---|
| E1 flashing | Joystick not centered | Do not operate the joystick during startup; after powering on, wait 1 second before operating the joystick. |
| E2 flashing / Left motor error | Poor connection to left motor | Check whether the left motor connection cable and controller connection are normal. |
| E3 flashing / Left brake error | Poor connection to left brake | Check whether the left motor brake cable and controller connection are normal. |
| E4 flashing / Right motor error | Poor connection to right motor | Check whether the right motor connection cable and controller connection are normal. |
| E5 flashing / Right brake error | Poor connection to right brake | Check whether the right motor brake cable and controller connection are normal. |
| E7 flashing / Joystick error | Joystick fault | Check whether the joystick has been off-center during startup; look for obstruction or jam. |
| E9 flashing / Brake error | Parameter configuration error | Check whether the motor brake clutch is in the correct position or whether the wheelchair brake parameters are set incorrectly. |
| E10 flashing | MOSFET short circuit | Controller needs to be returned for after-sales service. |
| E11 flashing / Low battery | Low battery voltage | Check whether the battery voltage is under-voltage or over-voltage. |
| E12 flashing | Left motor short circuit | Check whether the left motor cable is damaged or if the two poles are shorted/overloaded. |
| E13 flashing | Right motor short circuit | Check whether the right motor cable is damaged or if the two poles are shorted/overloaded. |
| E14 flashing | Rear control, mobile phone, remote joystick not centered | Check whether the motor is blocked by foreign objects or stuck in a pit. |
| E30 flashing | Manual/Electric mode switch error | For electric mode, set the switch to position 1. |
